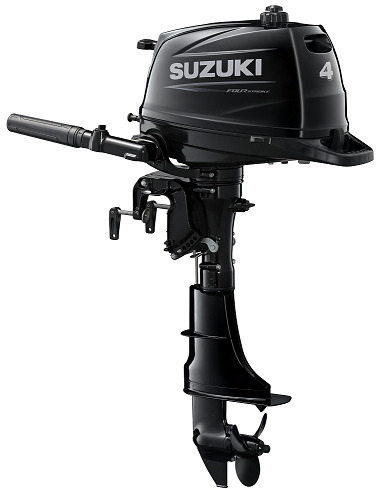

Suzuki DF4AL Outboard Motor, Long Shaft, 4CP

Suzuki DF4AL Outboard Motor, Long Shaft, 4CP

Suzuki is a renowned manufacturer in the field of boat engines, offering a wide range of solutions that combine modern technologies and continuous innovation. The engineering experience accumulated in developing 4-stroke engines is reflected in the reliability, performance, and efficiency of these powerplants. While other manufacturers have experimented with alternative technologies, Suzuki has remained consistent in using 4-stroke engines, continuously refining them to meet current demands. This approach has produced compact, powerful engines that are easy to integrate on any type of boat.

The engines are equipped with advanced fuel systems that facilitate quick starting and meet the strictest emission standards. Performance is supported by OHV configurations with large displacement and low weight, providing quick acceleration and responsive throttle. The tilt system operation contributes to a high level of comfort, and precise steering with multiple tilt positions allows easy adaptation to boat type and water depth. Durability is ensured by Suzuki’s anti-corrosion finish applied directly to the aluminum for superior protection against wear in aquatic environments.

NOTE: Undermotoring a boat should be avoided, as the engine will run at higher revs, leading to premature wear of parts and increased fuel consumption. Overpowering a boat can create handling difficulties, very high consumption and costs (consumables, parts, etc.).

Features:

• Engine type: 4-stroke, OHV;
• Displacement: 138cc;
• Cylinders: 1;
• Bore x Stroke: 60.4x48mm;
• Fuel system: carburetor;
• Maximum power: 4CP;
• Maximum throttle range: 4000 - 5000RPM;
• Starting: pull start;
• Ignition system: Digital CDI;
• Gear ratio: 1.92:1;
• Shaft length: 508mm (long);
• Weight: 26kg;
• Control: hand-operated;
• Steering: 360°;
• Trim adjustment: Manual Trim and Tilt;
• Alternator: 12V, 6A (Optional);
• Cooling: pressure-controlled water cooling system;
• Engine color: black;
• Manufacturer's warranty: 5 years, provided the conditions of the service and warranty book are followed.
