Sonar Chartplotter Garmin GPSMAP 8416xsv CHIRP/ ClearVu/ SideVu without Transducer

Sonar Chartplotter Garmin GPSMAP 8416xsv CHIRP/ ClearVu/ SideVu without Transducer

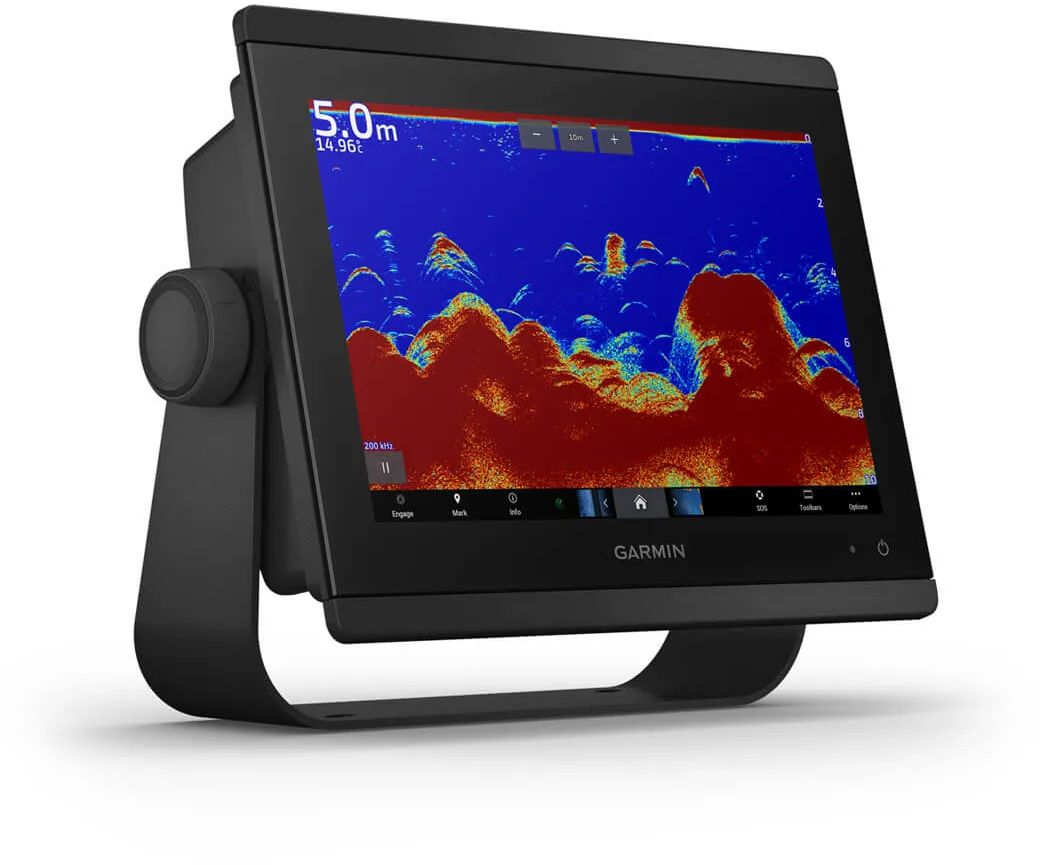

The Garmin GPSMAP 8416xsv chartplotter is a modern device equipped with a WUXGA IPS touchscreen display that delivers superior clarity, wide viewing angles, and optimal visibility even in sunlight, including with polarized sunglasses. The edge-to-edge design allows for sleek and versatile mounting, either flush or flat, providing a modern look on board your boat.

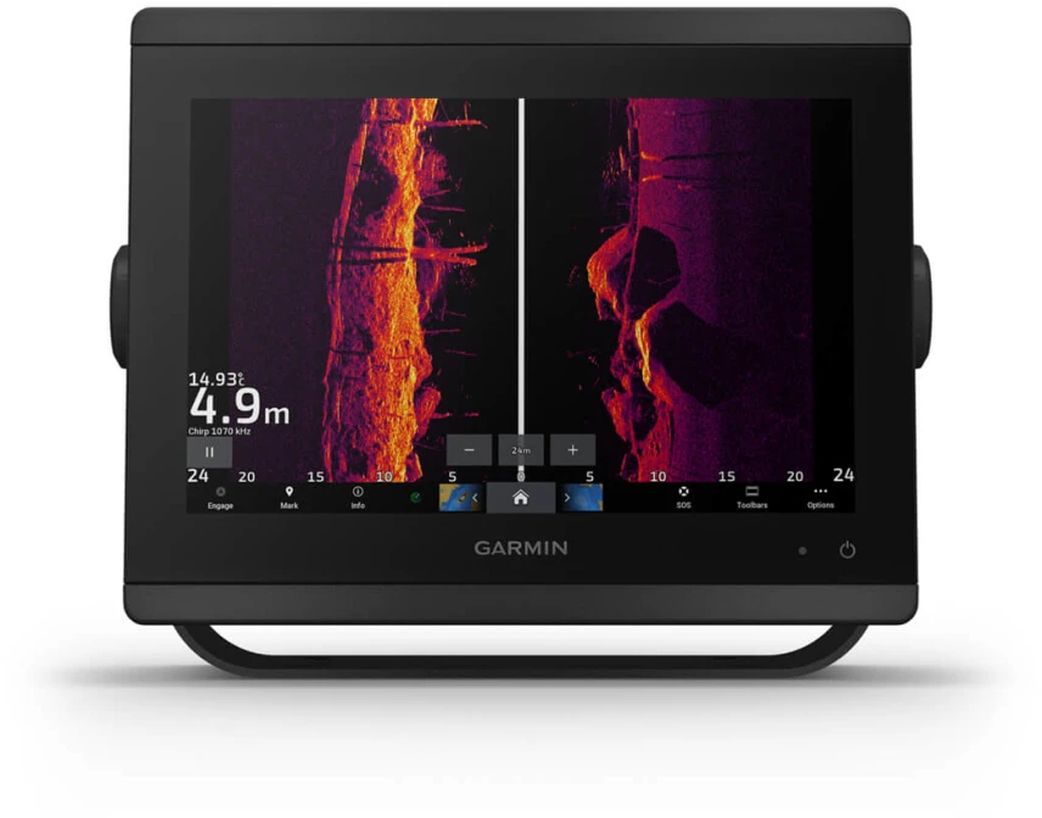

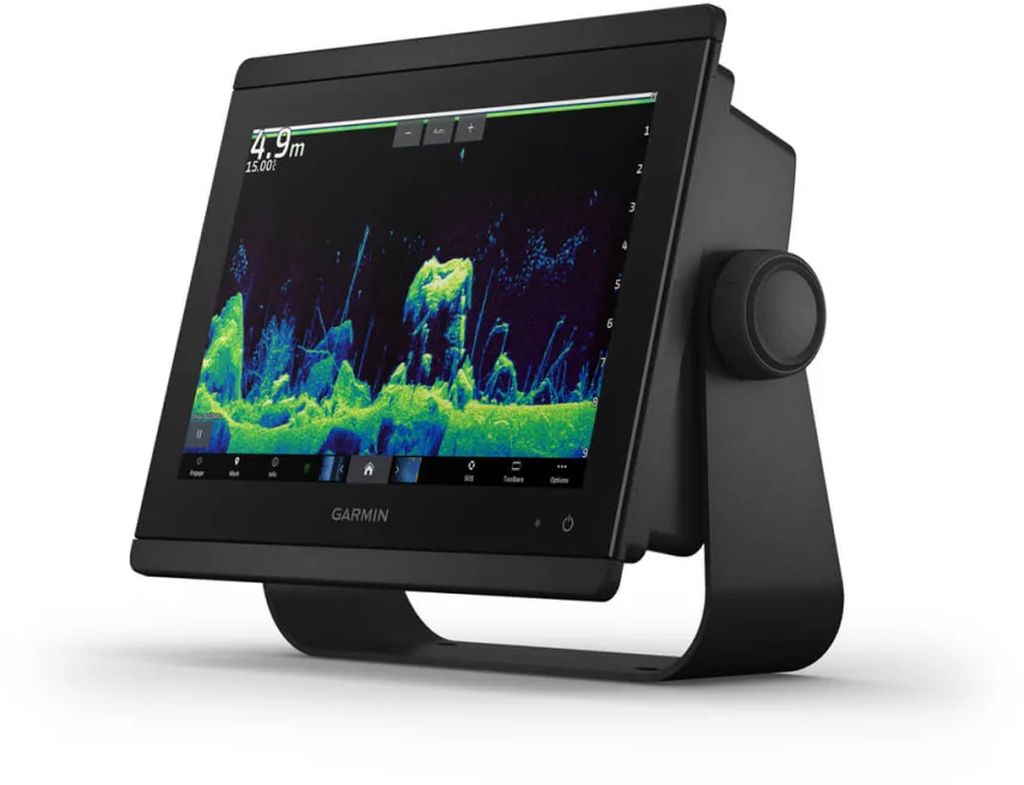

This xsv model integrates a powerful sonar, including a 1 kW dual-channel CHIRP, as well as ClearVu and SideVu sonars for clear and detailed images (without needing an additional black box). It is compatible with Panoptix and LiveScope technologies, enabling real-time underwater environment viewing. It is built for full integration into marine networks, supporting NMEA 2000, NMEA 0183, Garmin Marine Network, and multiple Fusion-Link audio-video devices, radars, and IP cameras.

The GPSMAP 8416xsv supports premium Garmin Navionics+, Vision+, and BlueChart maps, offers advanced navigation features such as Auto Guidance+, SmartMode, and OneHelm, and allows integration with Power-Pole systems and the Force trolling motor. Wireless connectivity (Wi-Fi, Bluetooth, ANT) and the ActiveCaptain app facilitate software updates, smart notifications, and access to the QuickDraw community. It is a robust and versatile solution with IPX7 water resistance and optimized power consumption.

Package includes: GPSMAP 8416xsv Chartplotter with CHIRP/ ClearVu/ SideVu Sonar, power cable, mounting kit, NMEA connection accessories, protective cover, documentation.

Note: Does not come with a transducer!

Features:

• Device type: Multifunction chartplotter with CHIRP/ ClearVu/ SideVu Sonar;
• Dimensions: 38.50cm x 26.30cm x 7.60cm;
• Weight: 4.40kg;
• Water resistance: IPX7;
• Display type: WUXGA IPS touchscreen;
• Display size: 34.50cm x 19.50cm x 39.70cm;
• Display diagonal: 39.70cm;
• Display resolution: 1920 x 1080 pixels;
• Mounting: flush, embedded, or bail (optional accessory);
• Card slots: 2 microSD;
• Waypoints: 5000;
• Track points: 50000;
• Saved tracks: 50;
• Routes: 100;
• Sensors: GPS, GLONASS, Galileo;
• GPS receiver: 10 Hz, high sensitivity;
• NMEA 2000 / NMEA 0183: compatible;
• WAAS: supported;
• Built-in maps: Quickdraw Contours;
• Optional map support: Garmin Navionics+, Vision+, BlueChart g3/g3 Vision, LakeVu g3/g3 Ultra, TOPO 100K;
• AIS, DSC: compatible;
• Fusion-Link audio/video support;
• Wireless connectivity: Wi-Fi, Bluetooth, ANT;
• Ports: NMEA2000 x1, NMEA0183 x2, J1939 x1, Garmin Marine Network x2, HDMI in x1, HDMI out x1, Video BNC x1;
• Power supply voltage: 10-32 V DC;
• Typical power consumption: 1.5 A at 12 V;
• Maximum power consumption: 6.0 A at 12 V, 40.1 W at 10 V;
• Additional features: SmartMode, OneHelm, Power-Pole integration, Force trolling motor integration, inReach integration, commands via ActiveCaptain.
