Sonar Chartplotter Garmin GPSMAP 8410xsv CHIRP/ ClearVu/ SideVu without Transducer

Garmin GPSMAP 8410xsv CHIRP/ ClearVu/ SideVu Sonar Chartplotter without Transducer

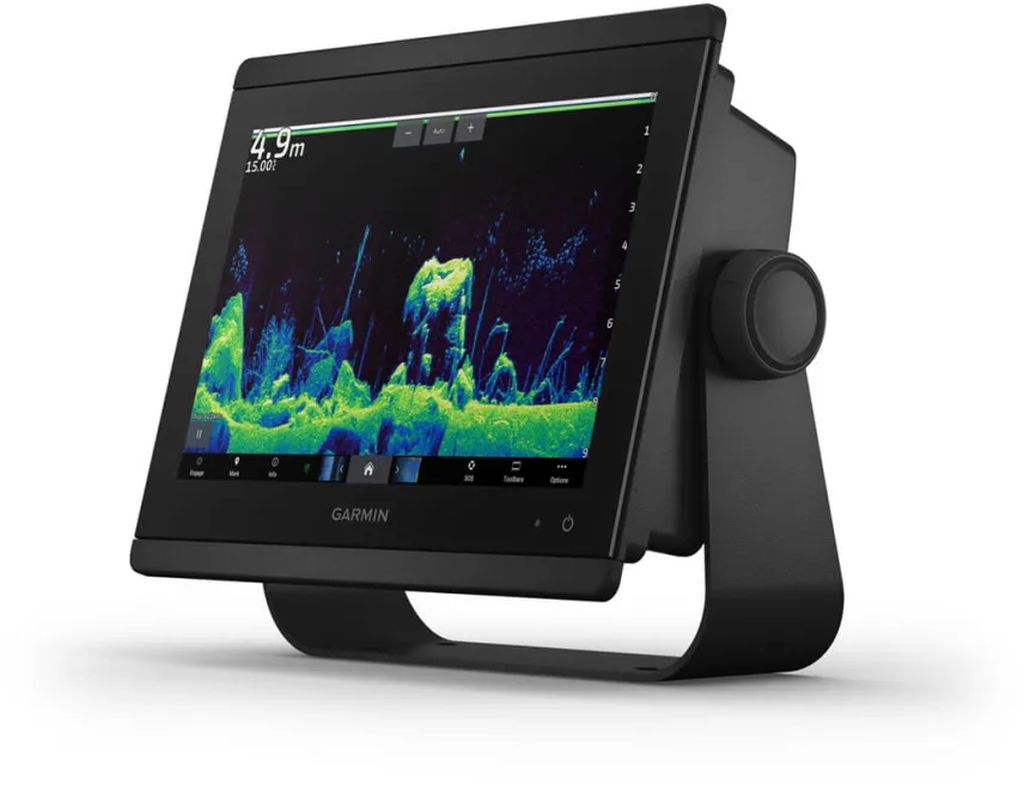

The Garmin GPSMAP 8410xsv chartplotter is an advanced device, equipped with an IPS WUXGA touchscreen display that offers clarity, wide viewing angles, and superior readability in sunlight, even with polarized sunglasses. The edge-to-edge design allows for a sleek integration on board, either flush or flat mount, ensuring a modern and professional appearance.

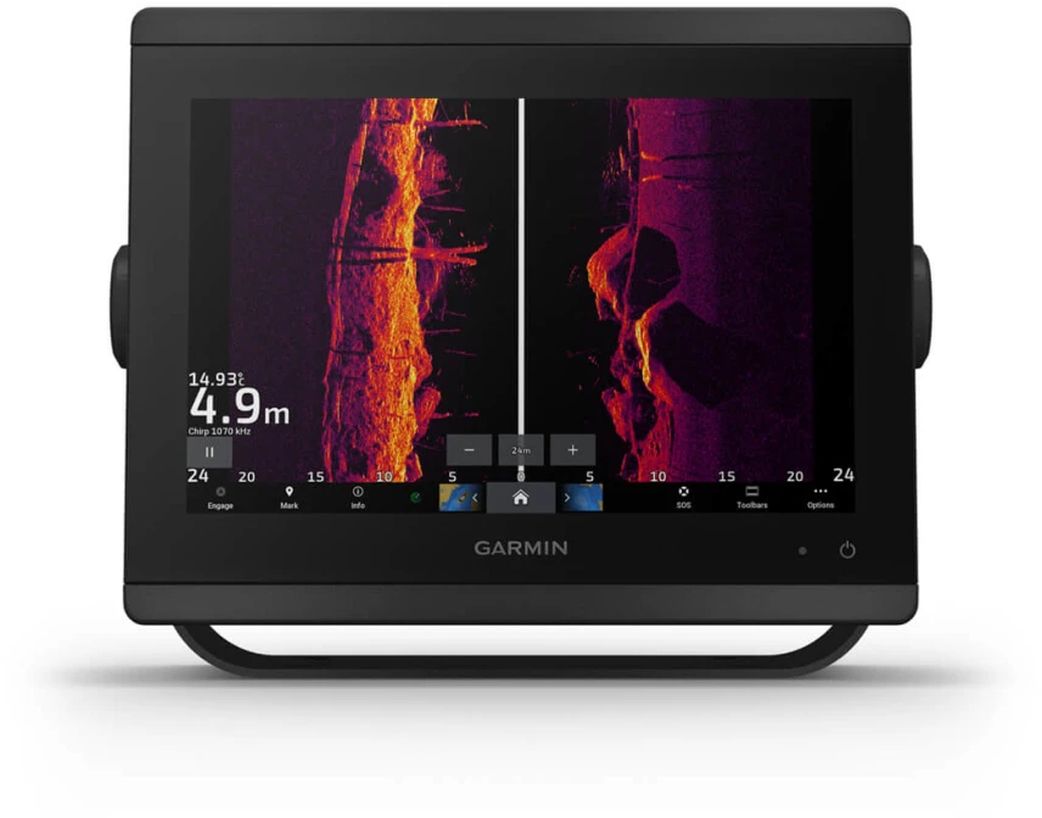

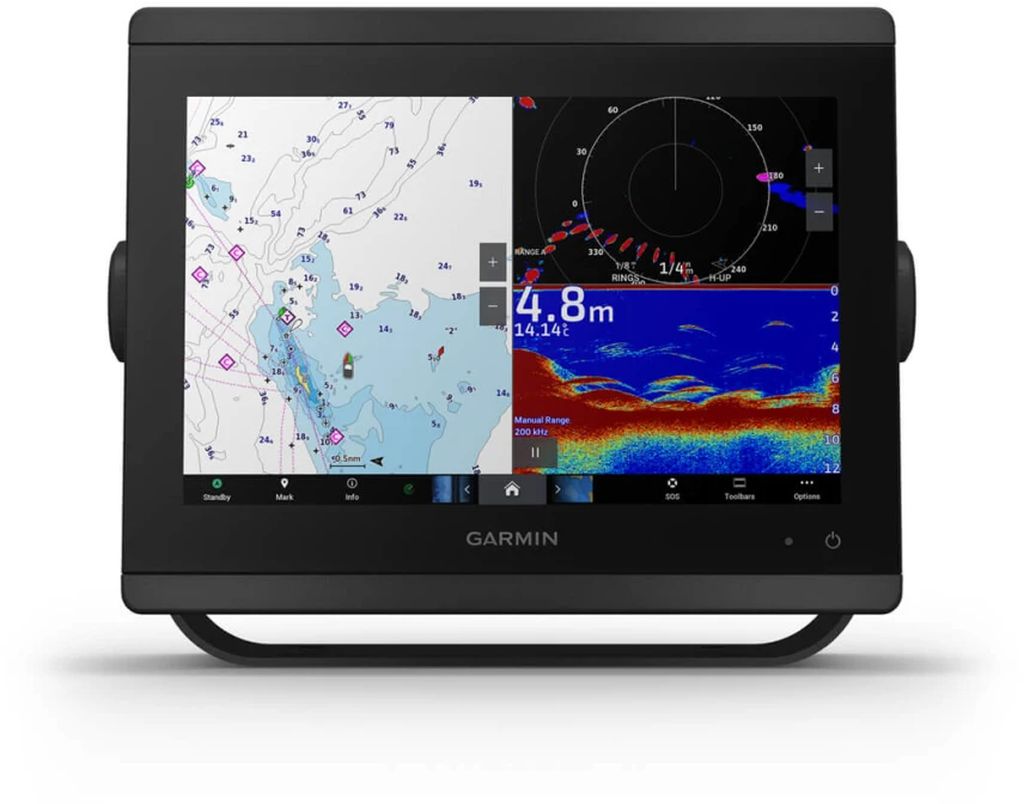

The xsv model incorporates a powerful sonar, including a 1 kW dual-channel CHIRP, as well as ClearVu and SideVu sonars for clear and detailed images (without the need for an additional black box). It is compatible with Panoptix and LiveScope technologies, allowing real-time underwater environment viewing. Additionally, the unit supports Garmin radars, IP cameras, and extensive connectivity with other equipment via NMEA 2000, NMEA 0183, and Garmin Marine Network.

The GPSMAP 8410xsv is built to deliver premium performance, supporting optional Garmin Navionics+ and Vision+ maps, as well as features like Auto Guidance+, SmartMode, and OneHelm. The ActiveCaptain app allows wireless software updates, smart notifications, and access to the QuickDraw community. Integrated Wi-Fi, Bluetooth, and ANT connectivity facilitate integration with marine watches, sensors, and other compatible accessories.

It is the ideal solution for both sailors and anglers, offering advanced boat control features, integration with Power-Pole and Force trolling motor systems, and the ability to send messages via linked inReach devices. The robust construction and IPX7 water resistance guarantee reliability in challenging marine conditions.

Package includes: GPSMAP 8410xsv chartplotter with CHIRP/ ClearVu/ SideVu sonar, power cable, mounting kit, NMEA connection accessories, protective cover, documentation.

Note: Does not come with a transducer!

Features:

• Device type: Multifunction chartplotter with CHIRP/ ClearVu/ SideVu sonar;
• Dimensions: 25.90x20.50x7.50cm;
• Weight: 2.40kg;
• Water resistance: IPX7;
• Display type: IPS WUXGA touchscreen;
• Display size: 21.80x13.70cm;
• Display diagonal: 25.70cm;
• Display resolution: 1920x1200 pixels;
• Mounting: flush or flat;
• Card slots: 2 microSD;
• Waypoints: 5000;
• Track points: 50000;
• Saved tracks: 50;
• Routes: 100;
• Sensors: GPS, GLONASS, Galileo;
• GPS receiver: 10 Hz;
• NMEA 2000: compatible;
• NMEA 0183: compatible;
• WAAS: supported;
• Built-in maps: Quickdraw Contours;
• Map support: Garmin Navionics+, Navionics Vision+, BlueChart g3, LakeVü g3, TOPO 100K;
• Tide tables: available;
• AIS and DSC compatible;
• Supports Fusion-Link audio;
• Connectivity: Wi-Fi, Bluetooth, ANT;
• Ports: NMEA2000 x1, NMEA0183 x2, J1939 x1, Garmin Marine Network x2, Video input BNC/HDMI, Video output HDMI;
• Power supply voltage: 10-32V DC;
• Typical consumption: 1.5A at 12V;
• Maximum consumption: 6.0A at 12V, 40.1W at 10V;
• Additional features: OneHelm, SmartMode, Power-Pole integration, Force trolling motor integration, compatible with inReach devices.
