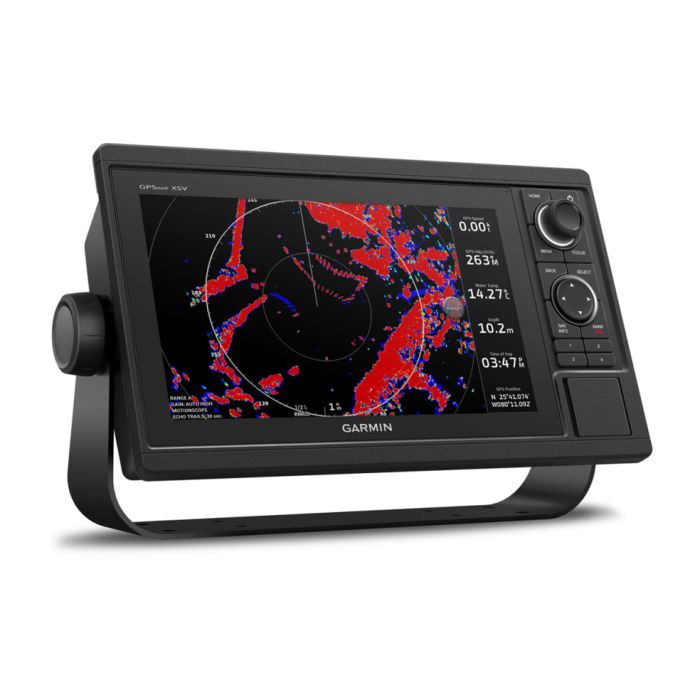

Garmin GPSMAP 1222 Sonar Chartplotter without Transducer

Garmin GPSMAP 1222 Sonar Chartplotter without Transducer

The Garmin GPSMAP 1222 chartplotter is a multifunctional device designed for marine navigation. The WSVGA screen offers good visibility in sunlight, and the button-based interface allows precise and quick control even in challenging conditions. It is built to withstand the marine environment, featuring IPX7 water resistance certification.

The device includes wireless connectivity through ANT and Wi-Fi, allowing pairing with Garmin quatix watches, gWind Wireless sensors, GNX Wind instruments, or the ActiveCaptain app for managing the marine experience. Additionally, it is compatible with Garmin Marine Network and NMEA 2000 networks, providing full integration with autopilot systems, sonars, radars, and other onboard equipment.

The GPSMAP 1222 offers advanced features such as Garmin SailAssist for sailing navigation, GPX transfer for waypoints, and Power-Pole integration for advanced vessel control. It is also compatible with Panoptix and LiveScope, Fusion-Link for audio control, as well as inReach satellite communication devices for sending messages directly from the chartplotter.

Package includes: GPSMAP 1222 Chartplotter, power/data cable, NMEA2000 T connector, 2m NMEA2000 drop cable, bail mounting kit, flush mounting kit with gasket, protective cover, decorative caps, documentation.

Note: Does not come with a transducer!

Features:

• Device type: Multifunctional chartplotter;
• Dimensions: 35.80x22.60x6.90cm;
• Weight: 2.34kg;
• Water resistance: IPX7;
• Display type: WSVGA NP;
• Display size: 26.20x16.30cm;
• Display diagonal: 30.70cm;
• Display resolution: 1280 x 800 pixels;
• Mounting: bail or flush;
• Card slots: 2 microSD;
• Waypoints: 5000;
• Route points: 50000;
• Saved tracks: 50;
• Routes: 100;
• Sensors: GPS, GLONASS;
• GPS receiver: 10 Hz;
• NMEA 2000: compatible;
• NMEA 0183: compatible;
• WAAS: supported;
• Built-in maps: Quickdraw Contours;
• Map support: BlueChart g3, BlueChart g3 Vision, LakeVü g3, LakeVü g3 Ultra, Garmin Navionics+, Garmin Navionics Vision+, TOPO 100K;
• Tide tables: available;
• AIS and DSC compatible;
• Supports Fusion-Link audio;
• Compatible with GSD/GCV Black Box Sonar (optional);
• Compatible with Panoptix and LiveScope;
• Connectivity: Wi-Fi, Bluetooth, ANT;
• Ports: NMEA2000 x1, NMEA0183 Rx x1, NMEA0183 Tx x1, Garmin Marine Network x2, Video input BNC x1;
• Power supply voltage: 10-32V DC;
• Typical consumption: 1.9A at 12V;
• Maximum consumption: 2.7A at 12V, 32.4W at 10V;
• Additional functions: ActiveCaptain, SailAssist, OneHelm, Power-Pole integration, Force trolling motor integration, inReach device compatibility.
