Sonar Lowrance Elite FS™ 7 with Active Imaging 3 in 1

Lowrance Elite FS™ 7 Sonar with Active Imaging 3 in 1

The new Elite FS™ sonar with Active Imaging 3 in 1 transducer is a third-generation device in the Elite series, the successor to the very popular Elite Ti2 model. With this, you will easily and quickly locate both fish zones and substrate information. Elite FS integrates cutting-edge technologies and the latest navigation features.

It offers state-of-the-art functions:
- ActiveTarget Live Sonar – provides high-resolution real-time images of fish movements in much greater detail. With this immediate feedback, anglers can adjust lure presentation and also discover if more active fish are in the area;
- Active Imaging 3 in 1 – the sonar delivers superior clarity and the highest resolution images of both fish and the substrate;
- FishReveal – effectively combines the traditional 2D sonar image with StructureScan and DownScan. It's easier to identify fish and get a better overall picture. In short, it enhances the on-screen image;
- C-MAP Genesis Live Mapping – is a social map of user-generated data from freshwater and saltwater systems worldwide. The advantage of Genesis is being able to download a highly detailed chart with precise contour intervals for systems already mapped by other Lowrance users. Genesis also allows you to record your own sonar data, upload it to a cloud-based social map, and start seeing details for previously unmapped areas.

The new device offers much-improved imaging and visualization, as well as better separation of scanned objects and details seen on the screen. Additionally, Elite FS features a highly responsive touchscreen, instant reaction to any touch, Wi-Fi wireless network allowing two displays (to monitor information from two different locations under the boat), smartphone integration (for call and SMS notifications), and compatibility with electric motors, trolling motors, and Power Pole Integration, ideal for shallow waters.

Images provided by the Active Imaging 3 in 1 transducer (CHIRP technology, DownScan and SideScan technologies, as well as 2D/1D vertical sonar/scan and lateral SideScan) maximize Elite FS’s efficiency in fish detection. See substrate structure at a new level of refined detail thanks to the 3-in-1 Active Imaging™ sonar structure imaging technology with CHIRP, SideScan, and DownScan featuring FishReveal™. Get the best CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily identify fish near structures and with high-detail DownScan coverage.

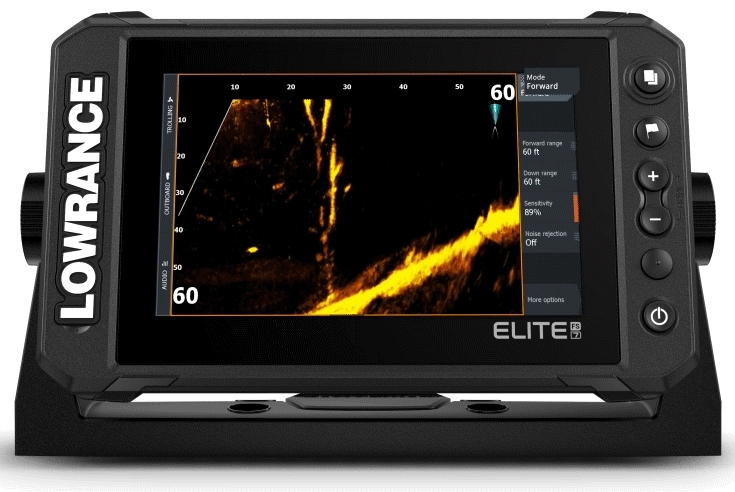

Fish smarter when you know exactly where the fish are located—in real time—with ActiveTarget™ Live Sonar. Enjoy high-resolution images of fish movements, watching them as they swim in the targeted area. Observe their real-time behavior around your bait and know whether your technique is working or if it’s time to change strategy.

Elite FS is a sonar with a clear display – wide screen, 16:9 aspect ratio, multitouch, designed with high-brightness LED backlighting. Its modern, flexible software with an intuitive menu system, cursor assistant, marker mode, and innovative screen visualization technology with quick, instant access to all menus allow a wider viewing angle regardless of sunlight intensity. Thanks to the improved processor integrated into the Elite FS series, refresh rates and menu responsiveness are significantly enhanced. The Elite FS series includes many innovations and functionalities designed solely to benefit anglers.

The Elite-7 FS Combo Active Imaging 3 in 1 offers smooth operation thanks to its faster processor, intuitive functions, and user interface, including scrolling between individual menus, cursor assist, various functional and useful modules, and a range of innovative display options, all operable with a single touch or finger swipe.

Elite-7 FS Combo features an SD card slot for viewing or installing map cards, recording and playing back data (from the device or external cards), and system software updates. The Lowrance Elite-7 FS Combo is compatible with Airmar transducers with power up to 1 kW — suitable for deep and saltwater (such transducers are an additional option).

Preloaded with a worldwide base map, Elite FS sonars offer compatibility with a broad range of chart options, including C-MAP®, Navionics®, and more.

For those who want to purchase maps for Romania (Black Sea from Rezovo (BG) to Sulina (RO), Danube from the Romania border to the Black Sea, Danube-Black Sea Canal; Danube Delta, including lakes and connecting channels) and Bulgaria, they can do so by accessing the following link: Maps for Romania and Bulgaria for Lowrance Sonars

Features:

• Dimensions: 7 inch (178mm);
• Display resolution: 800x480 px;
• Screen brightness: > 1200 nits;
• Backlighting: White LED (pure white);
• Display type: Widescreen, 16:9, Multitouch Screen;
• Ethernet ports: 1 x 100Mbit;
• Weight: 0.90kg;
• Refresh rate: 10Hz;
• GPS: 10Hz high-sensitivity internal WAAS + EGNOS + MSAS;
• Shock vibration: 100,000 cycles at 20G;
• Compass Safe: 12" (300mm);
• GPS receiver channels: 16;
• Sonar technology: Active Imaging 3 in 1;
• Transducer type: 4 frequencies (4 beams);
• Coverage: 83kHz - 120°, 200kHz - 60°, 455kHz - 55°, 800kHz - 30° + SideScan - up to 91 m on each side;
• Operating frequency: 83/200 kHz;
• CHIRP frequency: medium / high;
• DSI frequency: 455/800 kHz;
• Output power: RMS 500W;
• Scan depth: 83/200 kHz - up to 305m, DSI - up to 91m;
• Temperature sensor: yes;
• Speed sensor (via GPS): yes;
• GPS: yes;
• GPS chartplotter: yes;
• Memory tracks: 100 (with up to 10,000 waypoints);
• Waypoints: 3,000;
• Routes: 100;
• Maximum speed: 55 km/h;
• Depth alarm: yes;
• Surface alarm: yes;
• Fish alarm: yes;
• NMEA: yes;
• Protective coating: yes;
• Micro SD card slot: 1, supports memory cards up to 32 GB;
• Waterproof housing: IPx7 (with card door closed);
• Power supply 12V DC (10-17 VDC min-max);
• Power consumption min-max: 2.0A / 13.0 VDC;
• Fuse: yes;
• Transducer cable length: 7.6m;
• 9-pin transducer – black;
• Storage temperature: -20°C to 60°C;
• Operating temperature range: -15°C to 55°C;
• Viewing angles: 50° up, 60° down, 70° left/right;
• NMEA 2000 connectivity: 1x Micro-C;
• Position accuracy: 20m RMS;
• Time to first fix: 30s;
• Recommended fuse: 3A;
• Compatible with 4G radar (broadband), 3G radar (broadband) Halo20 (pulse compression dome radar), Halo20+ (pulse compression dome radar);
• Target overlay AIS. Target vessel details;
• Accepted charts: C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (USA only), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners;
• Mounting type: gimbal mount or flush mount;
• Connectivity element: Internal WiFi 802.11b/g/n;
• Multi-touch screen interface Zoom +/- MOB = (+/- combined);
• Active Imaging 3 in 1 Transducer – enhanced CHIRP technology, DownScan and SideScan technologies;
• Active 2 in 1 display (DownScan and SideScan technologies);
• C-MAP Genesis Live mapping – real-time mapping and topography;
• Smartphone notifications – smartphone integration with Elite FS, receiving text messages and phone call info directly on the device screen;
• FishReveal Smart Target View – an innovative fish visualization system (thickened diagrams in DownScan Imaging mode - DSI);
• Enhanced C-MAP USA charts preloaded with high details (preloaded detailed maps) (applicable in USA and Canada);
• C-MAP Easy Routing, Navionics Autorouting – easy navigation and routing (requires paid subscription);
• Multi-touch screen, visible even through polarized sunglasses (excellent visibility even in direct sunlight and at a low angle);
• Built-in CHIRP technology and broadband sound;
• SmartSteer sensor control and sonar control for anchor motors with GPS guidance Motorguide Xi5 / Xi3;
• Enhanced surface clarity – an innovative feature that helps better visualize fish near the upper water layer close to the surface;
• Quick access control bar – intuitive sliding menu, with fast, instant access to every sonar function (including system) with a single touch;
• Ultra-precise internal GPS antenna built-in;
• Multi-window display – a feature allowing quick selection of layout and preset pages, including reviewing various panel charts, i.e., the screen allows splitting (up to 4 different information panels);
• Compatible with SonicHub2 audio server;
• Bluetooth 4.0 with Bluetooth Classic support;
• Built-in world base map;
• Option to purchase additional maps (C-MAP, Navionics);
• Option for hidden console installation;
• Package includes:
  • Lowrance Elite-7 FS sonar;
  • Display mounting bracket;
  • Lowrance hard protective cover;
  • Active Imaging 3 in 1 transducer (with 7.6 m cable);
  • Power cable;
  • 3.0A fuse;
  • Mounting hardware;
  • User manual.
