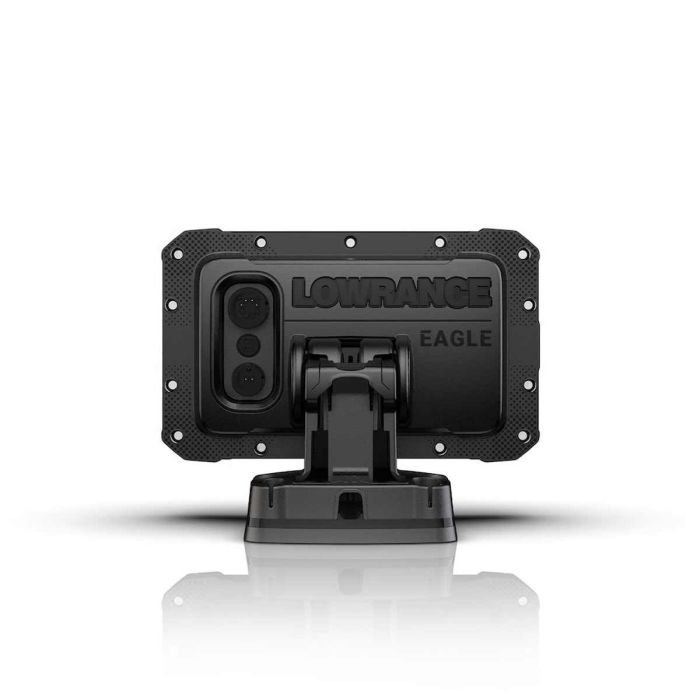

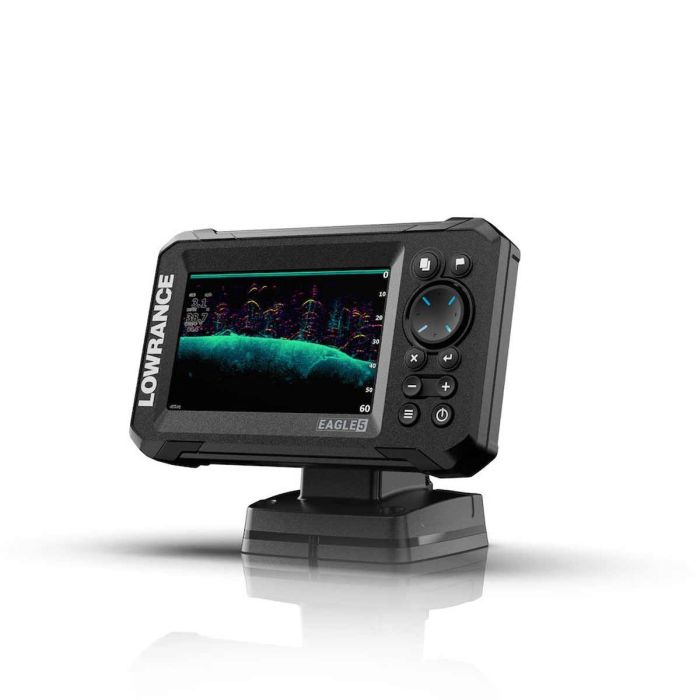

Lowrance Eagle 5 83/200 HDI Sonar

Lowrance Eagle 5 83/200 HDI Sonar

The Lowrance Eagle 5 with HDI 83/200 transducer is a user-friendly sonar, designed to enhance the fishing experience through advanced sonar technologies and simple installation. The 5-inch model includes features such as CHIRP sonar for clear target visualization and separation, while DownScan Imaging™ technology provides detailed images of underwater structures. FishReveal™ technology combines CHIRP sonar and DownScan Imaging™ for superior fish identification. The IPS display offers high resolution and excellent visibility from all angles, even in bright light. With a worldwide base map preloaded, the model also allows upgrading to CMAP® DISCOVER™ for additional navigation details. The HDI 83/200 kHz transducer delivers versatile capabilities for various depths and fishing environments. The device operates at 12V DC voltage, with a maximum power consumption of 280 mA, and features a compact design measuring 113.2 x 182.1 x 110.6 mm.

Features:

• Type: sonar + transducer;
• Model: Eagle 5 83/200 HDI;
• Dimensions: 113.2 x 182.1 x 110.6 mm;
• Screen size: 5 inch (12.70cm);
• Screen type: IPS;
• Screen resolution: 800 x 480;
• Viewing angle: 80° up/down, 80° left/right;
• Power supply voltage: 12V;
• Maximum power consumption: 280mA, 12VDC with backlight at max;
• Waterproof rating: IPX7;
• Operating temperature range: between -15°C and 55°C;
• Transducer: 83/200 HDI;
• Functions: Autotuning Sonar;
• FishReveal™ technology;
• DownScan Imaging™;
• Integrated GPS;
• Card reader max. 32GB;
• Base map included;
• Weight: 0.46kg;
• Includes mounting bracket.

Video presentation Lowrance Eagle 5 83/200 HDI Sonar
