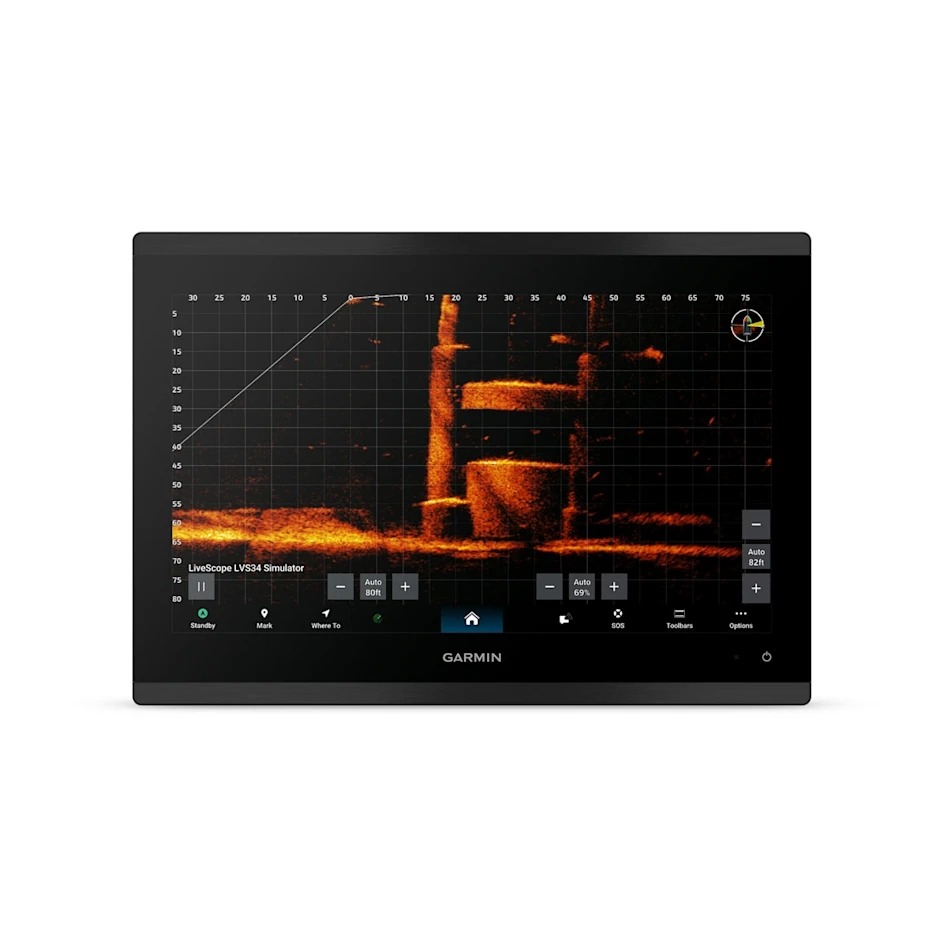

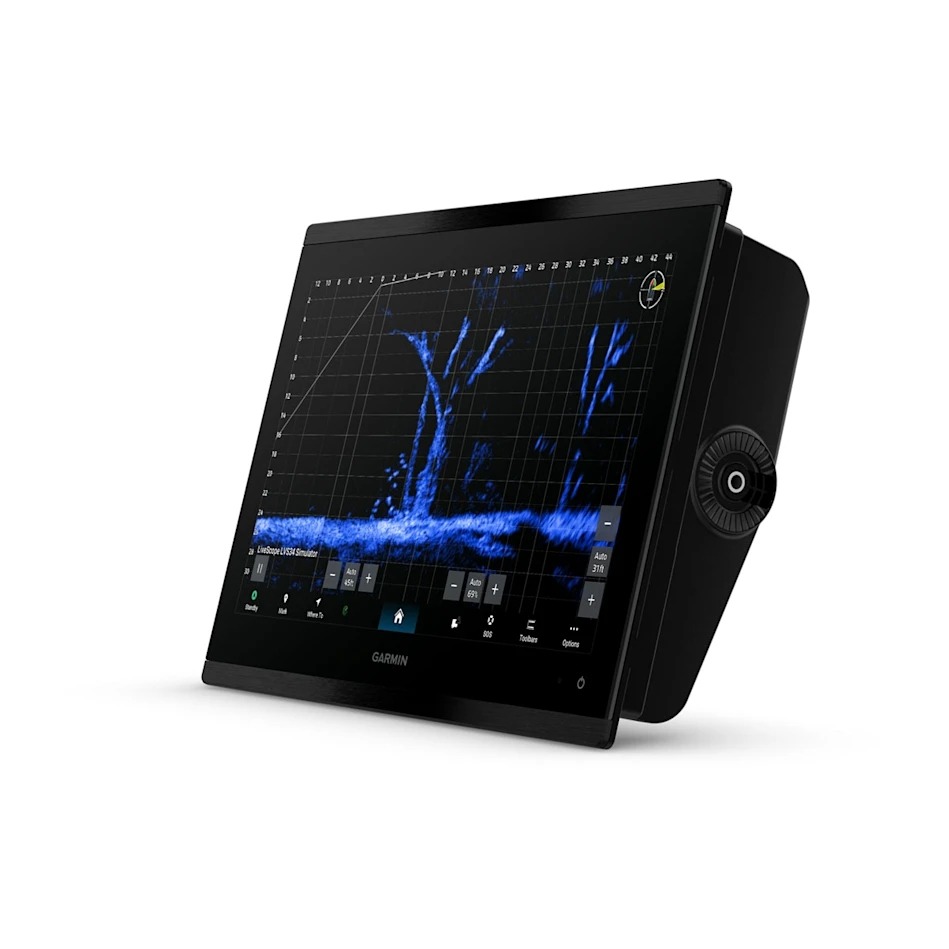

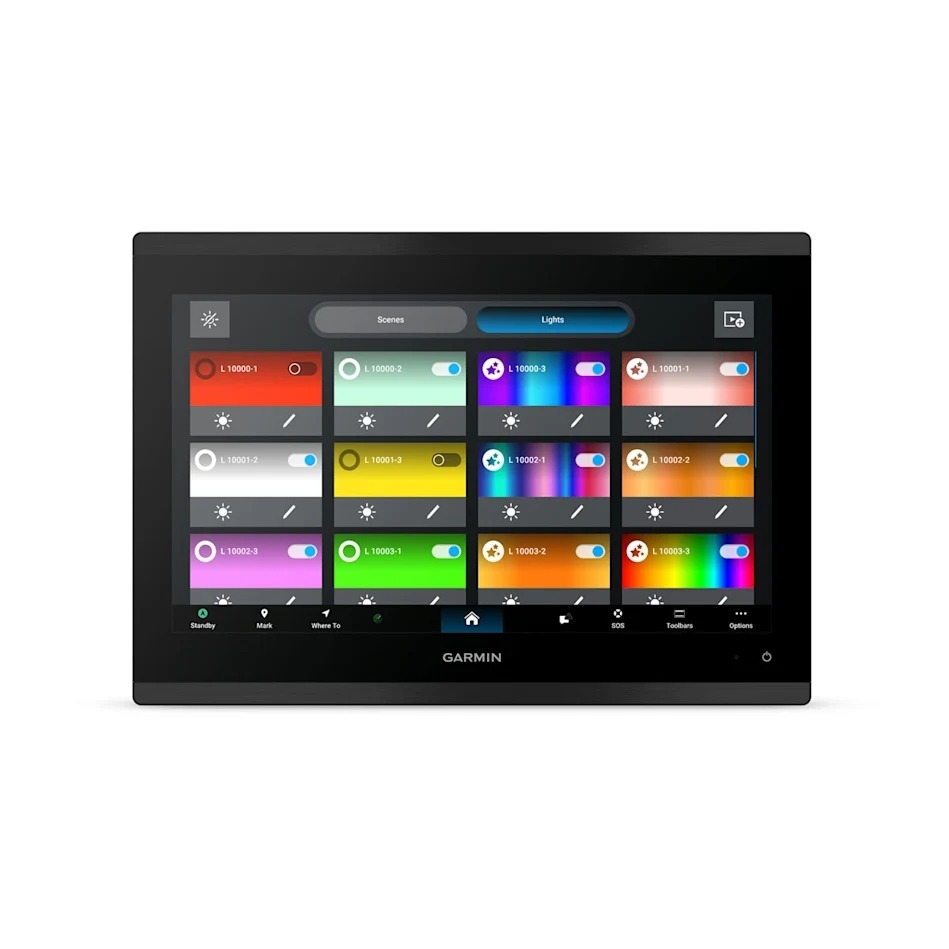

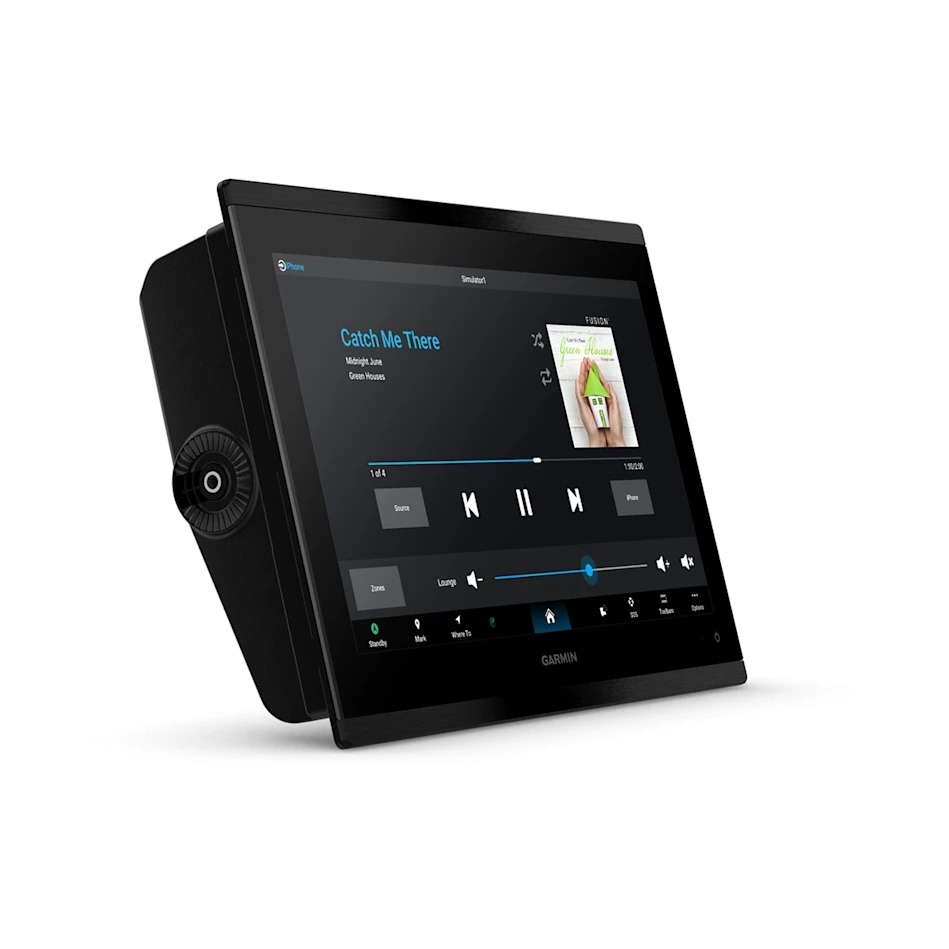

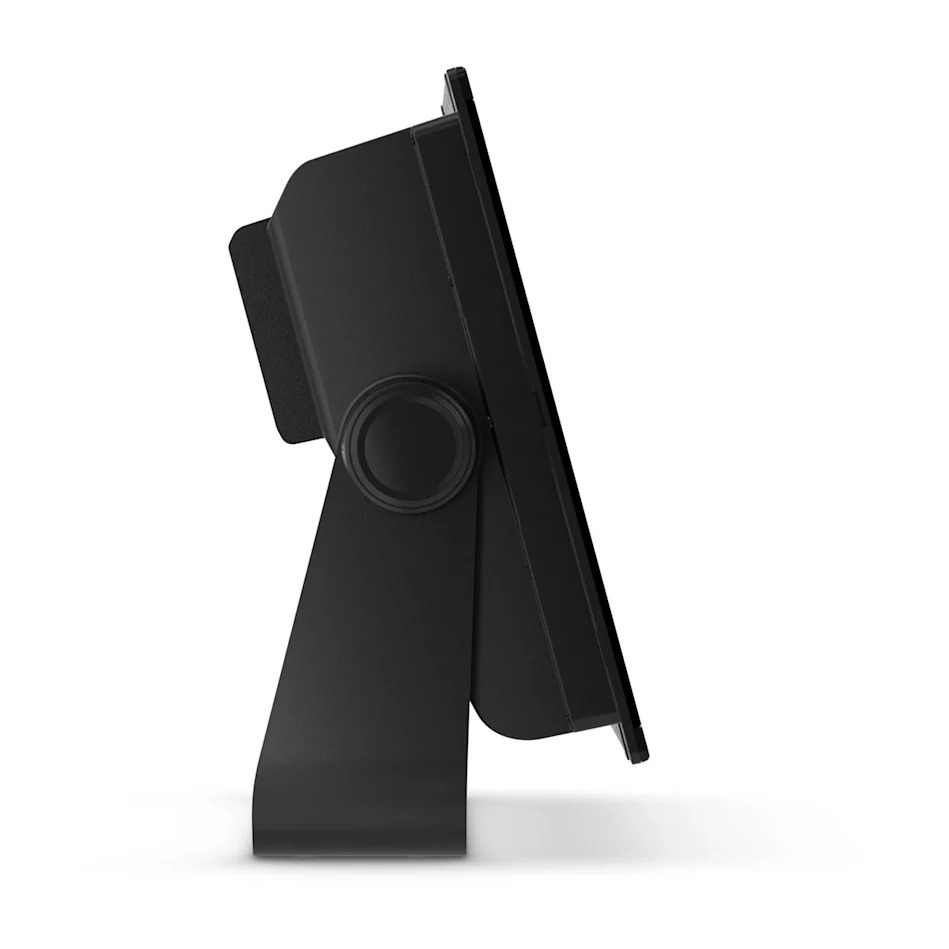

Garmin GPSMAP 9013xsv Chartplotter with Sonar

Garmin GPSMAP 9013xsv Chartplotter

Garmin GPSMAP 9013xsv is a multifunction chartplotter with a 13inch touchscreen, designed for navigation and fishing, combining advanced sonar and connectivity features into a complete system. The 4K IPS screen with high visibility in bright sunlight delivers clear, detailed imagery, and the edge-to-edge design allows easy integration into a modern glass helm. The platform benefits from significantly improved processing power, enabling fast chart redraws, smooth zoom and instant response to commands. :contentReference[oaicite:0]{index=0}

The built-in sonar uses 1kW xCHIRP technology and Garmin RapidReturn for clear target separation and detailed structure imaging. The system is compatible with ClearVü and SideVü, providing a complete view of the underwater environment. Extensive connectivity allows integration with NMEA 2000 and NMEA 0183 networks, as well as the Garmin BlueNet network, enabling connection of multiple devices including cameras, radars and other displays. :contentReference[oaicite:1]{index=1}

GPSMAP 9013xsv supports Garmin Navionics+ and Vision+ charts, offering advanced navigation and route-planning features. Dual-band wireless connectivity and compatibility with the ActiveCaptain app enable quick updates and expanded control. The unit is built for demanding marine conditions, with IPX7 certification and a rugged marine-grade construction. :contentReference[oaicite:2]{index=2}

Features:

• Product type: multifunction chartplotter with integrated sonar;
• Model: GPSMAP 9013xsv;
• Product code: 010-03176-02;
• Screen size: 13inch;
• Display: 4K IPS touchscreen;
• Resolution: 3840x2160 pixels;
• Edge-to-edge design;
• Built-in sonar xCHIRP 1kW;
• Garmin RapidReturn technology;
• Supports ClearVü and SideVü;
• Enhanced processor, up to 7x faster;
• Preloaded chart: Worldwide basemap;
• Compatible with Garmin Navionics+ and Vision+;
• Garmin BlueNet gigabit connectivity;
• NMEA 2000 compatible;
• NMEA 0183 compatible;
• Wireless connectivity: Wi-Fi dual-band, Bluetooth, ANT;
• Compatible with ActiveCaptain app;
• OneHelm and EmpirBus system integration;
• Engine integration support via J1939;
• Card slot: 2x microSD;
• Power input: 10-32Vdc;
• Maximum power consumption: approximately 44W;
• Dimensions: 33.5x23.4x9.1cm;
• Weight: 4.13kg;
• Protection class: IPX7;
• Color: black.
