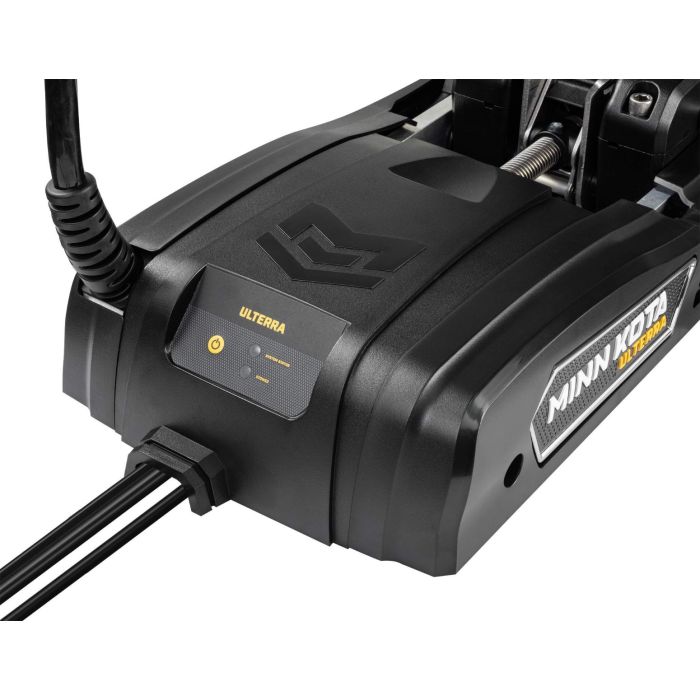

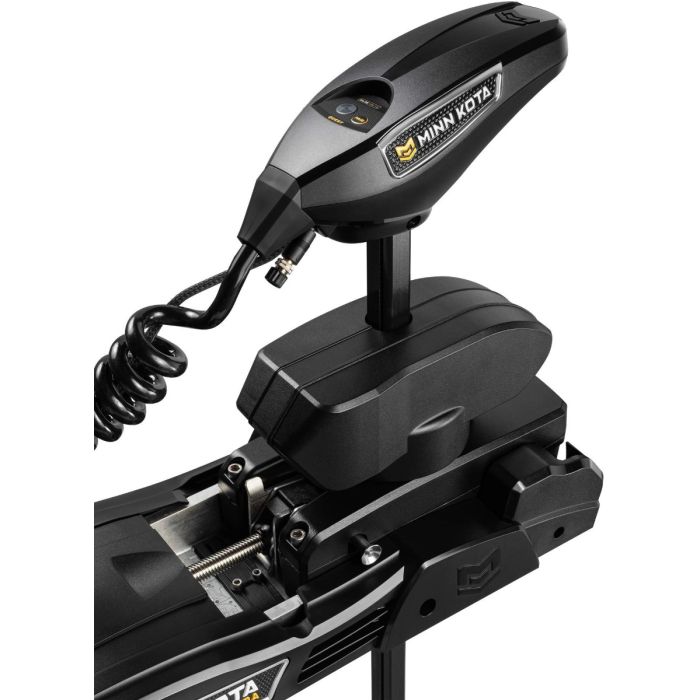

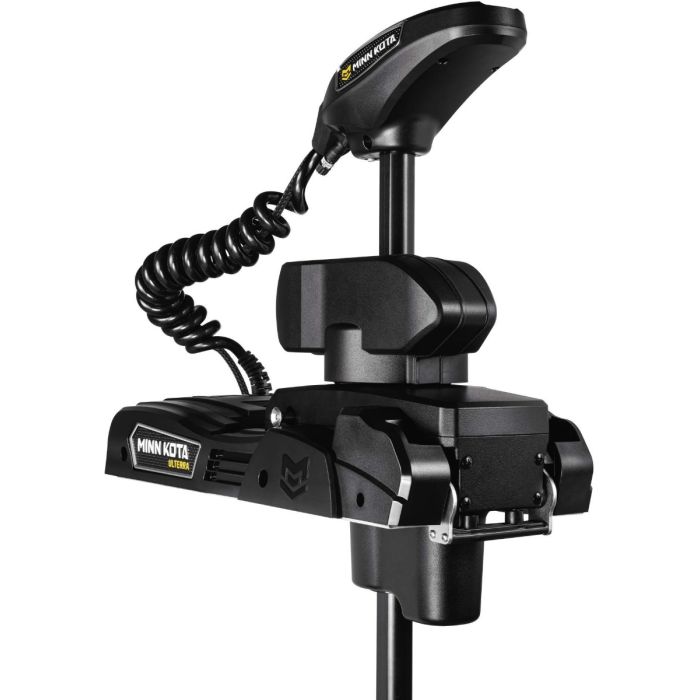

Minn Kota Ulterra Quest Electric Trolling Motor 90/115 WR MSI, 90/115lbs, 24/36V, 115cm

Minn Kota Ulterra Quest 90/115 WR MSI Electric Bow-Mount Motor, 90/115lbs, 24/36V, 115cm

Minn Kota Ulterra Quest 90/115 WR MSI is an electric bow-mount motor designed for freshwater use. It belongs to the QUEST series and uses a brushless motor with dual 24/36V power, delivering 90lbs of thrust at 24V and 115lbs at 36V. The 115cm shaft is suitable for boats where a compact bow motor configuration is required.

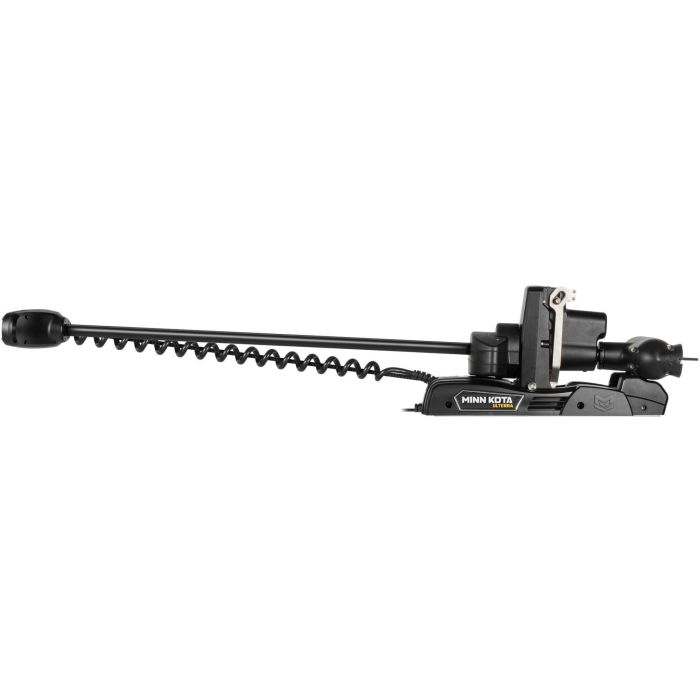

The Auto Stow & Deploy system allows the motor to be lowered and raised automatically via the wireless remote or the control foot pedal. The Power Trim feature provides electric adjustment of working depth, and the electric steering assist enables precise boat control without manually handling the motor.

The integrated GPS system offers advanced position and navigation features. Spot-Lock holds the boat automatically at a set position, and the Jog function lets you adjust position without disabling the GPS anchor. One-Boat Network integration allows connection to compatible Humminbird units and control of functions directly from the boat's electronics.

The MSI variant is equipped with an integrated MEGA Side Imaging transducer, providing access to MEGA Side Imaging and MEGA Down Imaging technologies for viewing structure, bottom and fish to the sides and beneath the boat. Integrating the transducer into the motor eliminates the need to mount it separately on the outside of the rig.

Digital Maximizer technology manages power consumption according to selected speed, helping to extend battery run-time. The motor features variable speed and can be controlled via the wireless remote or the included foot pedal.

Features:

• Type: bow-mount electric motor;
• Model: Ulterra Quest 90/115 WR MSI;
• Brushless motor;
• Use: freshwater;
• Thrust: 90lbs at 24V / 115lbs at 36V;
• Supply voltage: 24/36V;
• Maximum current draw: 60A;
• Shaft length: 115cm / 45inch;
• Auto Stow & Deploy system;
• Power Trim system;
• Electric steering assist;
• Integrated GPS system;
• Spot-Lock function;
• Jog function;
• Integrated MEGA Side Imaging transducer;
• MEGA Down Imaging technology;
• Digital Maximizer technology;
• Variable speed;
• Compatible with One-Boat Network;
• Compatible with appropriate Humminbird units;

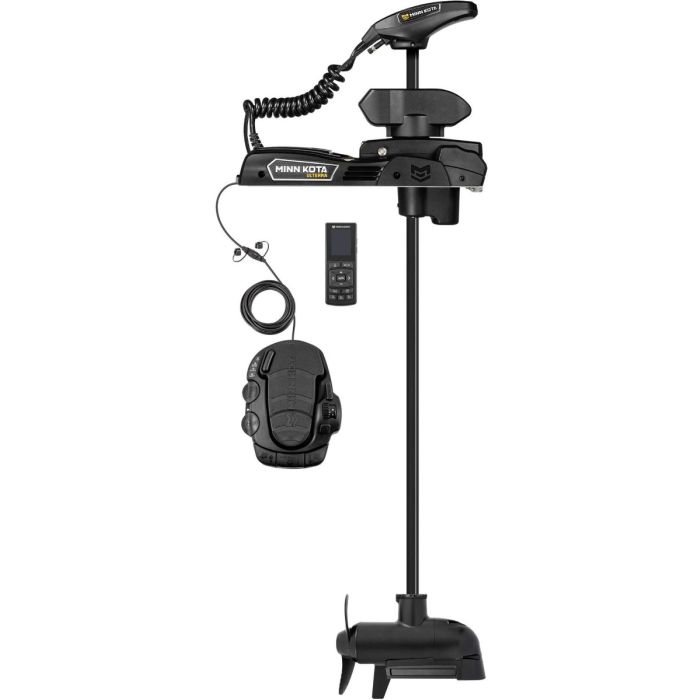

• Control via wireless remote;
• Control foot pedal included;
• Power Prop MKP-40 propeller;
• 9m Ethernet cable included.
