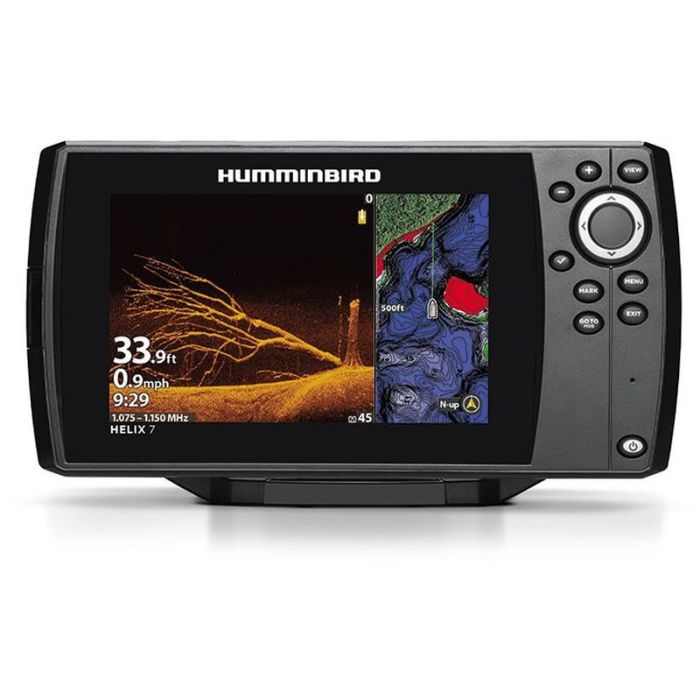

GPS Fishfinder Humminbird HELIX 7 CHIRP MEGA DI GPS G4N, 7inch, with Transducer

Humminbird HELIX 7 CHIRP MEGA DI GPS G4N GPS Fishfinder/Chartplotter, 7inch, with Transducer

The Humminbird HELIX 7 CHIRP MEGA DI GPS G4N is a GPS fishfinder designed for fishing and navigation, equipped with a 7inch color display with a resolution of 1024x600 pixels. The G4N model features networking capabilities, allowing integration with other compatible Humminbird and Minn Kota equipment.

The sonar system combines MEGA Down Imaging and Dual Spectrum CHIRP technologies. MEGA Down Imaging provides detailed images of structure and the bottom beneath the boat, while Dual Spectrum CHIRP helps identify fish and separate them from underwater structure.

The package includes the XNT 9 HW MDI 75 T transducer for transom mounting. This enables use of the Dual Spectrum CHIRP and MEGA Down Imaging functions available on the unit.

The integrated GPS enables navigation, waypoint marking, track logging and route management. Humminbird Basemap is integrated, and the unit is compatible with Humminbird LakeMaster and CoastMaster maps, as well as compatible Navionics charts.

AutoChart Live enables creating custom bathymetric maps directly while underway. The two MicroSD slots can be used for maps, software updates and managing saved data.

As a G4N model with networking features, the HELIX 7 can be integrated into the One-Boat Network ecosystem. Ethernet, NMEA 2000 and Bluetooth connections allow communication with various compatible equipment, including Minn Kota motors, MEGA Live systems and other Humminbird units.

Features:

• Type: GPS fishfinder / chartplotter;
• Model: HELIX 7 CHIRP MEGA DI GPS G4N;
• Manufacturer code: 411640-1;
• Generation: G4N;
• Screen diagonal: 7inch / 17.8cm;
• Display type: Color TFT;
• Screen resolution: 1024x600 pixels;
• Keypad control;
• Integrated GPS;
• MEGA Down Imaging technology;
• Dual Spectrum CHIRP technology;
• CHIRP Narrow frequency: 180-240kHz;
• CHIRP Wide frequency: 140-200kHz;
• CHIRP Full frequency: 150-220kHz;
• MEGA DI frequency: 1075-1150kHz;
• Down Imaging frequency: 455kHz;
• Fishfinder depth with standard transducer: up to 366m;
• Down Imaging depth at 455kHz: up to 107m;
• MEGA Down Imaging depth: up to 38m;
• Sonar power RMS: 500W;
• Sonar power Peak-to-Peak: 4000W;
• Humminbird Basemap integrated;
• AutoChart Live feature;
• Capacity: 2750 waypoints;
• Capacity: 47 routes;
• Capacity: 50 tracks / 20000 points;
• 2 MicroSD slots;
• Ethernet connectivity;
• NMEA 2000 compatible;
• Bluetooth connectivity;
• Compatible with One-Boat Network;
• Compatible with Minn Kota i-Pilot Link;
• Compatible with Minn Kota Built-In MEGA DI;
• Compatible with MEGA Live;
• Compatible with appropriate Humminbird 360 Imaging systems;
• Compatible with Humminbird LakeMaster;
• Compatible with Humminbird CoastMaster;
• Compatible with applicable Navionics charts;
• Power supply voltage: 10.8-20V DC;
• Current draw: 800mA;
• Unit weight: approx. 1.09kg;
• XNT 9 HW MDI 75 T transducer included;
• Transducer mounting: transom;
• Gimbal bracket included;
• Power cable included.
